Fully Automatic Pet Blow Molding Machine

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 1800-2000 Bottles Per Hour (BPH)

• Cavity Quantity
• 2 Cavities

• Clamping Force
• 100 kN (approx.)

• Clamping Stroke
• 120 mm (approx.)

• Color
• White/Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3.2 m x 2.2 m x 2.1 m

• Feature
• Other, High Efficiency, Low Noise, Fully-Automatic Operation

• General Use
• Manufacturing PET bottles and containers

• High Pressure Air Displacement
• 2.5 m3/min at 30 bar

• Infrared Heater
• Yes

• Low Pressure Air Displacement
• 1.2 m3/min at 8 bar

• Material
• Other, Steel Frame, Stainless Accessories

• Mould Stroke
• 150 mm (approx.)

• Power
• 20 kW (main machine only, approx.)

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 360 mm (approx.)

• Type
• Other, Bottle Blowing Machine

• Voltage
• 380 V, 50/60 Hz, 3 Phase

• Weight (kg)
• 2500 kg (approx.)

• Automatic
• Yes

• Blow Moulding Type
• Other, Fully Automatic

• Capacity
• 1800-2000 BPH (Bottles Per Hour)

• Cavity Quantity
• 3 Cavity

• Clamping Force
• 30-45 Tons (approx.)

• Clamping Stroke
• 120 mm - 150 mm (approx.)

• Color
• White/Blue (customization possible)

• Computerized
• Other, Yes, with HMI PLC Control

• Dimension (L*W*H)
• 3600 mm x 2100 mm x 2200 mm

• Feature
• Other, High Output, Low Power Consumption, Precision Control

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 3000-4000 L/min

• Infrared Heater
• Other, Yes, Preform Heating Section

• Low Pressure Air Displacement
• 1000-1500 L/min

• Material
• Other, Steel, Stainless Steel, Aluminum (for moulds)

• Mould Stroke
• 370 mm - 400 mm (approx.)

• Power
• 30-40 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 380 mm (typical, adjustable)

• Type
• Other, Injection Stretch Blow Moulding

• Voltage
• 380-415V, 3 Phase, 50/60 Hz

• Weight (kg)
• 2500-3000 kg (approx.)

• Automatic
• Yes

• Blow Moulding Type
• Other, PET Stretch Blow Molding

• Capacity
• 1800-2000 Bottles Per Hour (BPH)

• Cavity Quantity
• 3 Cavity

• Clamping Force
• 35 Tons

• Clamping Stroke
• 140 mm

• Color
• White & Blue

• Computerized
• Other, Yes, PLC Control with Touchscreen HMI

• Dimension (L*W*H)
• 4000 x 1800 x 2200 mm

• Feature
• Other, High Output, Energy Efficient, Advanced Automation, Precision Molding

• General Use
• Manufacturing PET Bottles, Containers

• High Pressure Air Displacement
• 3500 L/min

• Infrared Heater
• Other, Yes, With Adjustable Zones

• Low Pressure Air Displacement
• 1000 L/min

• Material
• Other, SS304 Contact Parts / Mild Steel Construction

• Mould Stroke
• 140 mm

• Power
• 24 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 360 mm

• Type
• Other, Servo Driven

• Voltage
• 380V / 50Hz

• Weight (kg)
• 3200 kg

• Automatic
• Other, Yes, Fully Automatic

• Blow Moulding Type
• Stretch Blow Moulding

• Capacity
• 2800-3000 BPH (Bottles Per Hour)

• Cavity Quantity
• 4 Cavity

• Clamping Force
• Approximately 30-35 Tons

• Clamping Stroke
• Approximately 140 mm

• Color
• White/Blue (Standard)

• Computerized
• Yes

• Dimension (L*W*H)
• 4200 mm x 1800 mm x 2200 mm

• Feature
• Other, High Efficiency, Energy Saving, Servo Driven, Easy to Operate, Low Maintenance

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 2500-3000 L/min

• Infrared Heater
• Yes

• Low Pressure Air Displacement
• 1000-1200 L/min

• Material
• Other, Steel/SS Structure, PET Preform Compatible

• Mould Stroke
• Adjustable, Typically 120-150 mm

• Power
• 40-55 kW (Total Installed)

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 380 mm

• Type
• Other, Electric/Servo Hybrid

• Voltage
• 380 V / 50-60 Hz

• Weight (kg)
• Approx. 4000 - 5500 kg

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 300-3600 Bottles Per Hour (BPH)

• Cavity Quantity
• 4 Cavity

• Clamping Force
• 45 kN

• Clamping Stroke
• 140 mm

• Color
• White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 4100 mm x 2000 mm x 2300 mm

• Feature
• Other, Auto Drop, High Production Rate, Low Labor Requirement

• General Use
• PET Bottle Manufacturing, Industrial Bottle Production

• High Pressure Air Displacement
• 2000 L/min (approx.)

• Infrared Heater
• Other, Equipped

• Low Pressure Air Displacement
• 1000 L/min (approx.)

• Material
• Other, Stainless Steel Body, PET Preform Handling

• Mould Stroke
• 120 mm

• Power
• 18-25 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 330 mm

• Type
• Other, Fully Automatic PET Blow Molding Machine

• Voltage
• 380 V / 50 Hz

• Weight (kg)
• 1800 kg

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 3000-3600 Bottles per Hour (BPH)

• Cavity Quantity
• 2 Cavity

• Clamping Force
• 35-40 Ton

• Clamping Stroke
• 120 mm

• Color
• White/Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3800 mm x 1800 mm x 2200 mm

• Feature
• Other, High Productivity, Energy Efficient, PLC Control

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 3.0 m3/min (approx.)

• Infrared Heater
• Yes

• Low Pressure Air Displacement
• 1.5 m3/min (approx.)

• Material
• Other, Mild Steel (Body), PET (Product Material)

• Mould Stroke
• 200 mm

• Power
• 32 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 370 mm

• Type
• Other, Fully Automatic

• Voltage
• 380V, 3 Phase, 50Hz

• Weight (kg)
• 2800 kg

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 3000 Bottles Per Hour

• Cavity Quantity
• 4 Cavity

• Clamping Force
• 45 kN

• Clamping Stroke
• 125 mm

• Color
• White and Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 3500 x 2200 x 2200 mm

• Feature
• Other, High Efficiency, Energy Saving, Fully Automatic

• General Use
• Manufacturing PET bottles

• High Pressure Air Displacement
• 3.0 m3/min

• Infrared Heater
• Other, Fitted

• Low Pressure Air Displacement
• 1.2 m3/min

• Material
• Other, Mild Steel / Stainless Steel

• Mould Stroke
• 130 mm

• Power
• 18 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 370 mm

• Type
• Other, Blow Molding Machine

• Voltage
• 380V 3Phase 50Hz

• Weight (kg)
• 3000 kg (approx.)

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 5400 Bottles Per Hour (BPH)

• Cavity Quantity
• 4 Cavity

• Clamping Force
• 45 Ton

• Clamping Stroke
• 120 mm

• Color
• White / Blue

• Computerized
• Other, Yes, PLC Controlled with Touch Screen

• Dimension (L*W*H)
• 4.2 m x 2.2 m x 2.7 m

• Feature
• Other, Energy Efficient, High Output, User-Friendly Interface

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 3600 L/min, 25-35 bar

• Infrared Heater
• Yes

• Low Pressure Air Displacement
• 1400 L/min, 8-10 bar

• Material
• Other, Mild Steel & Stainless Steel

• Mould Stroke
• 60 mm

• Power
• 36 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 370 mm

• Type
• Other, Fully Automatic PET Blow Molding Machine

• Voltage
• 380 V, 3 Phase, 50/60Hz

• Weight (kg)
• 2200 kg

• Automatic
• Yes

• Blow Moulding Type
• Stretch Blow Moulding

• Capacity
• 7200 Bottles Per Hour (BPH)

• Cavity Quantity
• 4 Cavity

• Clamping Force
• 400 kN

• Clamping Stroke
• 125 mm

• Color
• Standard/Customizable (Image shows White and Blue)

• Computerized
• Yes

• Dimension (L*W*H)
• 5580 mm 1830 mm 2100 mm

• Feature
• Other, High Speed, Low Power Consumption, High Precision, PLC Control, Servo System

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 4.8 m3/min (30 Bar)

• Infrared Heater
• Other, Equipped

• Low Pressure Air Displacement
• 2.0 m3/min (7-8 Bar)

• Material
• Other, Stainless Steel / Mild Steel

• Mould Stroke
• 380 mm

• Power
• 42 kW

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 380 mm

• Type
• Other, Plastic Blow Molding Machine

• Voltage
• 380 V / 50 Hz (3 Phase)

• Weight (kg)
• Approx. 5200 kg

• Automatic
• Other, Fully Automatic

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 9600 Bottles Per Hour (BPH)

• Cavity Quantity
• 6 Cavities

• Clamping Force
• Approximately 50-70 kN

• Clamping Stroke
• 110 mm

• Color
• White and Blue

• Computerized
• Other, Yes, PLC Controlled

• Dimension (L*W*H)
• 4600 mm x 2100 mm x 2500 mm

• Feature
• Other, High Production Efficiency, Energy Saving, User-friendly Interface

• General Use
• PET Bottle Manufacturing

• High Pressure Air Displacement
• 3.2 m3/min at 30-40 Bar

• Infrared Heater
• Other, Yes, Equipped

• Low Pressure Air Displacement
• 1.6 m3/min at 8-10 Bar

• Material
• Other, Mild Steel Body, Suitable for PET Preform Processing

• Mould Stroke
• Adjustable

• Power
• 30-40 kW Total Installed

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 360 mm

• Type
• Other, Blow Molding Machine

• Voltage
• 380V/50Hz (Three Phase)

• Weight (kg)
• 3500-4000 kg (approximate)

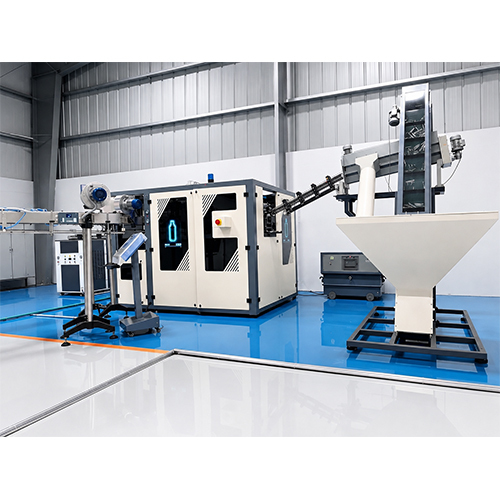

• Automatic
• Other, Yes, Fully Automatic

• Blow Moulding Type
• Stretch Blow Moulding

• Capacity
• 12000 BPH (Bottles Per Hour)

• Cavity Quantity
• 8 Cavity

• Clamping Force
• Approximately 60 kN

• Clamping Stroke
• 120 mm

• Color
• White/Blue & Black accents

• Computerized
• Yes

• Dimension (L*W*H)
• 6000 mm x 3000 mm x 3000 mm

• Feature
• Other, High-speed production, energy efficient, PLC controlled, consistent output, integrated preform feeding system

• General Use
• Manufacturing PET bottles and containers

• High Pressure Air Displacement
• 5.0 m3/min at 3.0 MPa

• Infrared Heater
• Other, Yes, integrated preform heating system

• Low Pressure Air Displacement
• 2.0 m3/min at 0.8 MPa

• Material
• Other, Stainless Steel, Alloy Steel

• Mould Stroke
• 60 mm

• Power
• Approx. 60-80 kW Total Connected Load

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• 400 mm

• Type
• Other, Blow Molding Machine

• Voltage
• 380V, 50/60Hz

• Weight (kg)
• Approx. 6000-8000 kg

• Automatic
• Yes

• Blow Moulding Type
• Other, Stretch Blow Molding

• Capacity
• 18,000 Bottles Per Hour (BPH)

• Cavity Quantity
• 10 Cavity

• Clamping Force
• ~50-70 kN

• Clamping Stroke
• 120 mm - 350 mm

• Color
• White/Blue or as per order

• Computerized
• Other, PLC Control System

• Dimension (L*W*H)
• Approx. 7800 mm x 2600 mm x 3200 mm

• Feature
• Other, Automatic operation, high speed, precision molding, energy-efficient

• General Use
• Production of PET bottles/containers

• High Pressure Air Displacement
• 6.0m3/min at 30-40 bar

• Infrared Heater
• Other, Integrated for preform heating

• Low Pressure Air Displacement
• 2.5m3/min at 8-10 bar

• Material
• Other, PET (Polyethylene Terephthalate)

• Mould Stroke
• Extended/Adjustable

• Power
• 60-90 kW (Depends on configuration)

• Product Type
• Fully Automatic Blow Molding Machine

• Stretching Stroke
• Max. 360 mm

• Type
• Other, Horizontal, Linear Type

• Voltage
• 380V / 50-60Hz / 3 Phase

• Weight (kg)
• Approx. 10,000 - 12,000 kg
