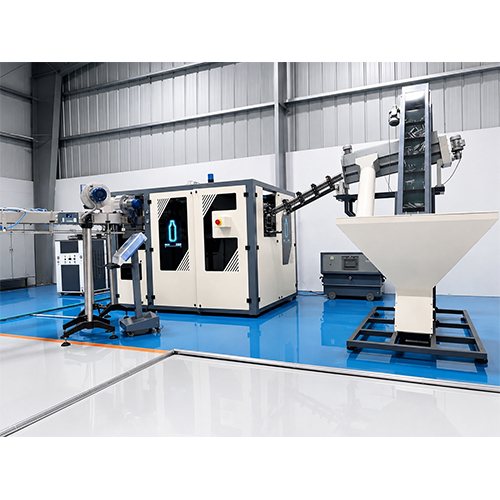

Send InquiryFully Automatic Blow Molding Machine 3000 BPH 4 Cavity
MOQ : 1 Unit
Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity Specification
- Product Type
- Fully Automatic Blow Molding Machine
- General Use
- Manufacturing PET bottles
- Material
- Mild Steel / Stainless Steel
- Capacity
- 3000 Bottles Per Hour
- Weight (kg)
- 3000 kg (approx.)
- Type
- Blow Molding Machine
- Computerized
- Yes
- Automatic
- Yes
- Blow Moulding Type
- Stretch Blow Molding
- Cavity Quantity
- 4 Cavity
- Clamping Force
- 45 kN
- Clamping Stroke
- 125 mm
- Mould Stroke
- 130 mm
- Stretching Stroke
- 370 mm
- Low Pressure Air Displacement
- 1.2 m3/min
- High Pressure Air Displacement
- 3.0 m3/min
- Power
- 18 kW
- Infrared Heater
- Fitted
- Voltage
- 380V 3Phase 50Hz
- Dimension (L*W*H)
- 3500 x 2200 x 2200 mm
- Feature
- High Efficiency, Energy Saving, Fully Automatic
- Color
- White and Blue
- Noise Level
- <75 dB
- Operation Mode
- Full Automatic Cycle
- Container Volume Range
- 200ml - 2000ml
- Neck Diameter Range
- 18-38 mm
- Touch Screen Interface
- 7-inch HMI
- Production Application
- Mineral Water, Beverage, Juice, Edible Oil Bottles
- Cooling Method
- Water Cooling Required
- Mould Change Time
- Within 30 Minutes
- Safety Features
- Integrated Safety Doors & Alarms
- Preform Heating Zone
- 8-12 Zones
- Bottle Output Orientation
- In-line Discharge Conveyor
- Preform Loading
- Conveyor Auto Loader
- PLC Control
- Siemens / Equivalent
- Air Compressor Requirement
- 30 Bar
- Preform Feeding System
- Automatic
Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Month
- Delivery Time
- 7-10 Days
About Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity
Discover rarefied efficiency with the Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity-a valorous solution for high-volume PET bottle manufacturing. This cost-effective equipment features unprecedented automation, a 7-inch HMI touch screen, and Siemens PLC controls. With a neck diameter range from 18-38 mm, brilliantly fast mould changes, and integrated safety systems, productivity is maximized and downtime minimized. The in-line discharge conveyor and energy-saving operation make it perfect for mineral water, beverage, and edible oil production. Get it now and elevate your manufacturing process.
Features, Application & Media
The Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity incorporates advanced features such as an automatic preform feeding system, conveyor auto loader, and a robust 45 kN clamping force for reliability. Its water cooling system ensures optimal operation and longevity. Widely applied in mineral water, juice, beverage, and edible oil bottle production, this machine operates with PET preforms and offers a container capacity range of 200ml to 2000ml, delivering precise, repeatable results for diversified industries.
Packaging & Export Details
Expect secure shipping with robust packaging tailored for international logistics. As a trusted distributor, exporter, and manufacturer in India, we serve export markets worldwide with swift, express shipping options. Delivery times are prompt, reflecting our commitment to customer satisfaction and seamless operations. The machine is carefully packed to prevent transit damage, ensuring it arrives at your facility in optimal condition for immediate deployment in your manufacturing line.
Features, Application & Media
The Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity incorporates advanced features such as an automatic preform feeding system, conveyor auto loader, and a robust 45 kN clamping force for reliability. Its water cooling system ensures optimal operation and longevity. Widely applied in mineral water, juice, beverage, and edible oil bottle production, this machine operates with PET preforms and offers a container capacity range of 200ml to 2000ml, delivering precise, repeatable results for diversified industries.
Packaging & Export Details
Expect secure shipping with robust packaging tailored for international logistics. As a trusted distributor, exporter, and manufacturer in India, we serve export markets worldwide with swift, express shipping options. Delivery times are prompt, reflecting our commitment to customer satisfaction and seamless operations. The machine is carefully packed to prevent transit damage, ensuring it arrives at your facility in optimal condition for immediate deployment in your manufacturing line.
FAQ's of Fully Automatic Blow Molding Machine 3000 BPH 4 Cavity:
Q: How does the automatic preform feeding system benefit production efficiency?
A: The automatic preform feeding system streamlines the manufacturing process by continuously supplying preforms to the machine, significantly reducing manual intervention and increasing the overall production rate while minimizing downtime.Q: What types of bottles can be produced on this blow molding machine?
A: This machine is designed to manufacture PET bottles ranging from 200ml to 2000ml, making it ideal for products such as mineral water, beverages, juice, and edible oil containers with neck diameters between 18 and 38 mm.Q: Where can this machine be used effectively?
A: The Fully Automatic Blow Molding Machine is perfect for bottle manufacturing facilities involved in producing PET containers for the beverage, bottled water, juice, and edible oil industries, both for domestic use and export markets.Q: What safety features are included in the machine?
A: The machine is equipped with integrated safety doors and audible alarms, providing enhanced operator protection and minimizing the risk of accidents during high-speed production cycles.Q: How quickly can mould changes be accomplished?
A: Mould changes can be completed within 30 minutes, enabling rapid product changeovers to meet diverse manufacturing requirements with minimal production interruption.
