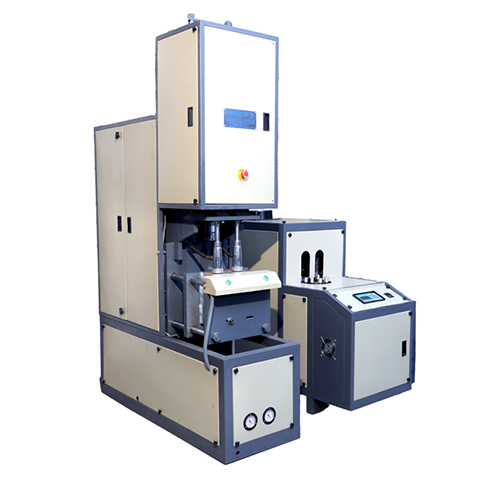

Send InquirySemi Automatic Blow Molding Machine 5ltr
MOQ : 1 Unit
Semi Automatic Blow Molding Machine 5ltr Specification
- Product Type
- Semi Automatic Blow Molding Machine
- General Use
- Manufacturing PET and PP bottles up to 5 liters
- Material
- Mild Steel, Stainless Steel Construction
- Capacity
- Up to 5 liters
- Weight (kg)
- 900 kg
- Type
- Blow Molding Machine
- Computerized
- No
- Automatic
- Semi-Automatic
- Blow Moulding Type
- Stretch Blow Molding
- Cavity Quantity
- 2 Cavity
- Clamping Force
- 70 kN
- Clamping Stroke
- 180 mm
- Mould Stroke
- 230 mm
- Stretching Stroke
- 360 mm
- Low Pressure Air Displacement
- 1.0 m3/min at 8 Bar
- High Pressure Air Displacement
- 1.2 m3/min at 30 Bar
- Power
- 12 kW
- Infrared Heater
- Yes, for preform heating
- Voltage
- 220-380V, 50/60Hz
- Dimension (L*W*H)
- 1800 mm x 650 mm x 1850 mm
- Feature
- Energy efficient, low maintenance, precise molding
- Color
- Beige and Blue
- Heating Power
- 6 kW
- Max Bottle Diameter
- 190 mm
- Cooling System
- Air Cooled/Water Cooled
- Output Rate
- 650-800 bottles/hr (for 5 L)
- Air Compressor Required
- Yes, not included
- Operating Temperature Range
- 10C - 40C
- Safety Features
- Emergency STOP, Overload Protection
- Max Bottle Height
- 320 mm
- User Interface
- Control Panel with Digital Display
- Neck Diameter Range
- 15 - 120 mm
- Preform Base Diameter
- Up to 38 mm
Semi Automatic Blow Molding Machine 5ltr Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Month
- Delivery Time
- 7-10 Days
About Semi Automatic Blow Molding Machine 5ltr
Discover the popular Semi Automatic Blow Molding Machine 5ltr, celebrated for its extraordinary engineering and pristine output quality. Crafted with a blend of mild and stainless steel, this redoubtable machine efficiently produces PET and PP bottles up to 5 liters, supporting a max bottle height of 320 mm and diameter of 190 mm. Featuring a digital control panel and special rate for bulk orders, it ensures precise molding, energy efficiency, and low maintenance. Personalise your production with variable neck diameters and two-cavity output for high-speed bottle manufacturing. Ideal for various applications, this machine delivers reliability for distributors, exporters, manufacturers, and wholesalers across India.
Versatile Performance for Industrial Applications
The Semi Automatic Blow Molding Machine 5ltr offers unrivaled flexibility, making it indispensable in beverage factories, household chemical plants, and packaging industries. Its competitive advantages include high output rates, robust construction, and low maintenance. Designed for commercial use, the machine supports batch and continuous production, ensuring optimal efficiency. With two cavities and energy-efficient technology, this equipment delivers precise molding for pristine bottles, ready to meet the demands of distributors, suppliers, and exporters seeking reliability and performance.
Order, Sample, and Delivery Information at a Glance
Sample availability ensures you can assess product quality before full-scale commitment. The main domestic market spans all regions of India, with FOB port handling available for smooth export logistics. Purchase orders are processed with agility, and order completion is prioritized for swift delivery. Whether seeking distributor or wholesaler rates, our list price is transparent and competitive. Trust our team for timely fulfillment and reliable after-sales support, making us your preferred supplier for semi automatic blow molding solutions.
Versatile Performance for Industrial Applications
The Semi Automatic Blow Molding Machine 5ltr offers unrivaled flexibility, making it indispensable in beverage factories, household chemical plants, and packaging industries. Its competitive advantages include high output rates, robust construction, and low maintenance. Designed for commercial use, the machine supports batch and continuous production, ensuring optimal efficiency. With two cavities and energy-efficient technology, this equipment delivers precise molding for pristine bottles, ready to meet the demands of distributors, suppliers, and exporters seeking reliability and performance.
Order, Sample, and Delivery Information at a Glance
Sample availability ensures you can assess product quality before full-scale commitment. The main domestic market spans all regions of India, with FOB port handling available for smooth export logistics. Purchase orders are processed with agility, and order completion is prioritized for swift delivery. Whether seeking distributor or wholesaler rates, our list price is transparent and competitive. Trust our team for timely fulfillment and reliable after-sales support, making us your preferred supplier for semi automatic blow molding solutions.
FAQ's of Semi Automatic Blow Molding Machine 5ltr:
Q: How does the Semi Automatic Blow Molding Machine 5ltr work?
A: The machine utilizes stretch blow molding technology to form PET or PP bottles from preforms. Preforms are heated using infrared lamps, then stretched and blown into molds using compressed air, producing bottles up to 5 liters in size.Q: What are the main benefits of using this blow molding machine?
A: Benefits include high production speed (650-800 bottles/hr), energy efficiency, precise molding, low maintenance, and the ability to personalize features such as neck diameter and bottle height for various applications.Q: When is air compressor and cooling system required for operation?
A: An air compressor is essential for the blowing process but is not included with the machine; you need to procure it separately. The cooling system, which can be air or water cooled, is needed during operation to maintain optimal temperatures.Q: Where can this machine be used commercially?
A: It is ideally suited for bottle manufacturing units, beverage processing plants, chemical packaging industries, and any business needing consistent, high-volume PET or PP bottle production.Q: What is the process for ordering, and are samples available?
A: Samples are available to assess machine performance before placing a purchase order. Orders can be processed for domestic and export markets, and FOB port delivery ensures smooth logistics for international clients.Q: How is the machine maintained for pristine output quality?
A: Maintenance is minimal due to its robust stainless steel and mild steel construction. Regular checks and cleaning, along with the integrated safety features, help maintain high-quality outputs.
