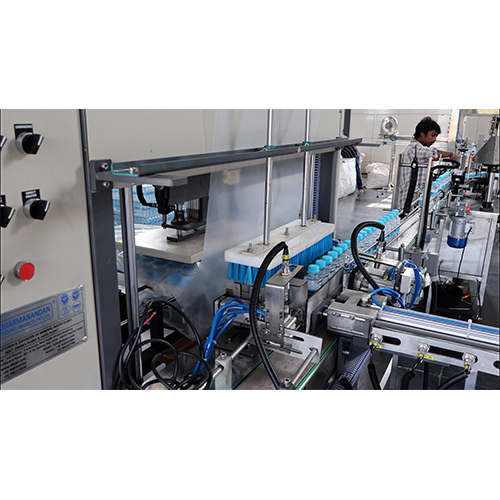

Send InquiryAutomatic 300 BPM mineral Water Plant
MOQ : 1 Unit
Automatic 300 BPM mineral Water Plant Specification
- Noise Level
- <70 dB(A)
- Technology
- Reverse Osmosis + UV + Ozone Disinfection
- Ph Level
- 6.5 - 7.5
- Feature
- PLC Controlled, High Filling Accuracy, Low Maintenance, Auto Rinsing, Filling & Capping
- Power Consumption
- 7-15 kW depending on configuration
- Recycle Rate
- Up to 99%
- Frequency
- 50 Hz
- Efficiency (%)
- >98%
- Flow Rate
- Custom as per requirement, up to 10000 L/hr
- Pump Type
- High Pressure Centrifugal Pump
- Water Out Conductivity
- <10 S/cm
- Water in conductivity
- Varies as per raw water
- Usage & Applications
- Bottling of mineral water, Drinking Water Packaging
- Drive Type
- Electric motor drive
- Material
- Stainless Steel 304/316
- Product Type
- Automatic Mineral Water Bottling Plant
- Purity Level
- Up to 99.99%
- Volume
- Customizable - typically 2000-10000 L/hr
- Voltage
- 380 V / 440 V, 3 Phase, 50 Hz
- Power Source
- Electric
- Water Source
- Borewell, River, Municipal supply, etc.
- Automatic Grade
- Automatic
- Filter Type
- Multigrade Sand Filter, Activated Carbon Filter, Micron Filter
- Capacity
- 300 Bottles Per Minute (BPM)
- Installation Type
- Skid Mounted / Floor Mounted
- Utilities Required
- Water Supply, Electric Power, Compressed Air
- Bottle Sterilization
- Integrated with UV system
- Capping Heads
- 6 heads (customizable)
- Human Machine Interface
- Touchscreen HMI
- Plant Dimensions
- Custom as per layout, typically 12m x 3m x 2.5m
- CIP System
- Yes, Automated Clean-In-Place
- Air Conveyor
- Provided for bottle in-feed automation
- Packaging Type
- Bottled (ready to use, sealed)
- Control System
- SIEMENS/Schneider PLC
- Rinsing Heads
- 18 heads (customizable)
- Labeling
- Automatic Labeling Machine Compatible
- Filling System
- Rotary, Neck Holding Type
- Bottle Size Range
- 200 ml to 2 Liter bottles
- Bottle Infeed Orientation
- Automatic with sensor alignment
- Safety Features
- Overload protection, Emergency stop, Interlocks
- Filling Heads
- 18 heads (customizable)
- Bottle Material Compatibility
- PET, HDPE Bottles
Automatic 300 BPM mineral Water Plant Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Month
- Delivery Time
- 7-10 Days
About Automatic 300 BPM mineral Water Plant
Experience unrivalled efficiency with the famed Automatic 300 BPM Mineral Water Plant, designed for pristine filling and bottling at an unbeatable price. Perfect for businesses seeking top-rated performance, this system handles 200 ml to 2-liter PET or HDPE bottles with seamless air-conveyor automation and sensor-aligned bottle infeed. Benefit from 18 customizable rinsing, filling, and capping heads, SIEMENS/Schneider PLC control, and high-grade UV sterilization. Personalise your layout and volume to match your needs-enjoy low maintenance, high purity, and world-class automation for bottled water production.
Diverse Applications & Easy Operation
The Automatic 300 BPM Mineral Water Plant is expertly crafted for bottling mineral and drinking water across various industries, including beverage production, hospitality, and retail chains. Its application method revolves around automatic rinsing, filling, capping, and labeling, streamlining every step from raw water feeding to finished product. Whether floor or skid mounted, this plant guarantees consistent output, with automated systems ensuring products meet rigorous safety and purity standards in every application area.
Reliable Supply & Seamless Export Experience
Secure shipping and robust logistics make exporting the Automatic 300 BPM Mineral Water Plant hassle-free for distributors, exporters, and wholesalers. Enjoy unbeatable sale prices tailored for bulk orders, backed by customizable payment terms for your convenience. Our distribution network covers key global markets including Asia, Africa, the Middle East, and Europe. With swift production timelines and personalized after-sales support, reliable plant supply and satisfaction are always assured.
Diverse Applications & Easy Operation
The Automatic 300 BPM Mineral Water Plant is expertly crafted for bottling mineral and drinking water across various industries, including beverage production, hospitality, and retail chains. Its application method revolves around automatic rinsing, filling, capping, and labeling, streamlining every step from raw water feeding to finished product. Whether floor or skid mounted, this plant guarantees consistent output, with automated systems ensuring products meet rigorous safety and purity standards in every application area.
Reliable Supply & Seamless Export Experience
Secure shipping and robust logistics make exporting the Automatic 300 BPM Mineral Water Plant hassle-free for distributors, exporters, and wholesalers. Enjoy unbeatable sale prices tailored for bulk orders, backed by customizable payment terms for your convenience. Our distribution network covers key global markets including Asia, Africa, the Middle East, and Europe. With swift production timelines and personalized after-sales support, reliable plant supply and satisfaction are always assured.
FAQ's of Automatic 300 BPM mineral Water Plant:
Q: How can I personalize the Automatic 300 BPM Mineral Water Plant for my facility?
A: You can personalize the plant's layout, bottle size range, capacity, rinsing, filling, and capping heads, as well as utility connections and automation configurations to perfectly fit your facility's requirements.Q: What bottle types and materials are compatible with this water plant system?
A: The system is compatible with PET and HDPE bottles, handling capacities for bottles ranging from 200 ml to 2 liters, making it ideal for diverse packaging needs.Q: Where is the Automatic 300 BPM Mineral Water Plant typically used?
A: This plant is widely used in water bottling facilities, beverage processing plants, hospitality sectors, and retail beverage supply chains for efficient mineral or drinking water packaging.Q: What is the process flow within the plant from bottle infeed to packaging?
A: The automatic process starts with air conveyor bottle in-feed and UV sterilization, followed by rinsing, filling, capping, labeling, and sealed packaging, ensuring high productivity and purity throughout.Q: How does the integrated CIP (Clean-In-Place) system benefit plant operations?
A: The automated CIP system ensures thorough internal cleaning and disinfection of all water contact surfaces, reducing downtime, ensuring hygiene, and minimizing manual maintenance requirements.
