Send Inquiry200 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water
MOQ : 1 Unit
200 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water Specification
- Type
- Fully Automatic Water Bottle Washing, Filling and Capping Machine
- Material
- Stainless Steel (SS 304/316)
- Power
- 3-5 kW
- Power Source
- Electric
- Voltage
- 380V / 415V / 220V, 3 Phase (customizable)
- Automatic Grade
- Fully Automatic
- Loading Type
- Front Loading
- Tub Material
- Stainless Steel
- Capacity
- 200 BPM (12000 BPH)
- Speed Mode
- 200 Bottles Per Minute (BPM)
- Dimension (L*W*H)
- Approx. 3600 mm x 2400 mm x 2400 mm
- Color
- Metallic/Silver
- Weight (kg)
- Approx. 1800 - 2300 kg
- Noise Level
- 75 dB(A)
- Cleaning Feature
- Automatic CIP (Clean-in-Place) Ready
- Bottle Size Range
- 200 ml to 2 liter
- Filling Principle
- Gravity or Counter Pressure Filling
- Capping Heads
- 6 Heads
- Working Pressure
- 0.6~0.8 MPa
- Filling Heads
- 18 Heads
- Control System
- Programmable Logic Controller (PLC) with Touch Screen HMI
- Water Consumption
- 1000~1500 LPH (For Rinsing)
- Installation Service
- Available on Demand
- Operation Method
- Automatic Bottle Infeed and Outfeed Conveyor
- Filling Accuracy
- 1%
- Air Consumption
- 0.6~0.8 m3/min
- Rinse Heads
- 18 Heads
- Machine Construction
- Base Frame on Adjustable Levelers with Anti-Vibration Pads
- Safety Feature
- Interlock Door Safety System, Emergency Stop Button
- Bottle Material Compatibility
- PET/Plastic Bottles
- Application
- Mineral Water Bottling, Packaged Drinking Water Industry
200 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Month
- Delivery Time
- 7-10 Days
About 200 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water
Introducing the scarce and first-rate 200 BPM Fully Automatic Water Bottle Washing, Filling and Capping Machine-a masterful solution engineered for mineral water bottling. With limited-time access and high-capacity operation at 200 bottles per minute, this valiant technology assures top-tier filling accuracy and advanced safety features. Designed with stainless steel construction, it accommodates bottle sizes from 200 ml to 2 liters and utilizes gravity or counter-pressure filling. The PLC with touch screen HMI ensures seamless operation. Installation services are available on demand across India-reserve yours to secure unmatched efficiency.
Wide Application for the Bottled Water Industry
The 200 BPM Fully Automatic Water Bottle Washing, Filling and Capping Machine is expertly suited for the packaged drinking water and mineral water bottling industries. Compatible with PET and plastic bottles ranging from 200 ml to 2 liters, it excels in diverse bottling environments. Its valiant technology is ideal for manufacturers, exporters, distributors, and service providers looking to elevate their operations with reliable, high-speed automation.
Flexible Order Policies and Fast Processing
Our sample policy ensures transparent charges at the lowest price for testing and validation. With streamlined order processing, delivery of your 200 BPM machine is accomplished within a defined timeframe, ensuring minimal business downtime. Flexible payment terms are available for distributors, suppliers, and wholesalers. Engage with us to secure your limited-access, first-rate machinery while stocks remain available.
Wide Application for the Bottled Water Industry
The 200 BPM Fully Automatic Water Bottle Washing, Filling and Capping Machine is expertly suited for the packaged drinking water and mineral water bottling industries. Compatible with PET and plastic bottles ranging from 200 ml to 2 liters, it excels in diverse bottling environments. Its valiant technology is ideal for manufacturers, exporters, distributors, and service providers looking to elevate their operations with reliable, high-speed automation.
Flexible Order Policies and Fast Processing
Our sample policy ensures transparent charges at the lowest price for testing and validation. With streamlined order processing, delivery of your 200 BPM machine is accomplished within a defined timeframe, ensuring minimal business downtime. Flexible payment terms are available for distributors, suppliers, and wholesalers. Engage with us to secure your limited-access, first-rate machinery while stocks remain available.
FAQ's of 200 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water:
Q: How does the 200 BPM Fully Automatic Water Bottle Machine improve production efficiency?
A: With its high-speed operation of up to 200 bottles per minute and fully automatic conveying, rinsing, filling, and capping, the machine streamlines and accelerates the entire bottling process, reducing labor costs and increasing throughput.Q: What types of bottles are compatible with this machine?
A: The machine is designed to process PET and plastic bottles within a size range from 200 ml to 2 liters, ensuring versatility to suit most mineral water and packaged water products.Q: Where can the 200 BPM Water Bottle Machine be installed?
A: Installation services are available on demand throughout India for plants, factories, and production facilities in the mineral water or packaged water sector.Q: What safety and cleaning features does the machine offer?
A: Equipped with interlock door safety, emergency stop button, and automatic CIP (Clean-in-Place) readiness, the machine prioritizes both operator safety and hygiene.Q: What is the order processing and delivery timeframe?
A: Order processing begins upon confirmation, with sample charges at the lowest prices. Delivery timelines vary but are efficiently managed to ensure prompt installation and setup.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Fully Automatic Rinsing, Filling, and Capping Mach Category

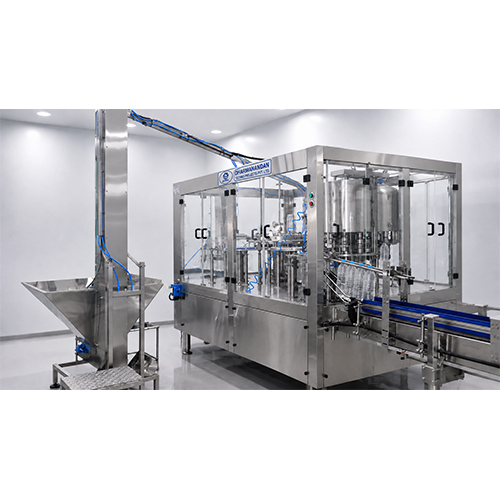

150 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water
Minimum Order Quantity : 1 Unit
Voltage : 220440 V
Power : 57 kW
Power Source : Electric
Speed Mode : 150 Bottles Per Minute (BPM)
Dimension (L*W*H) : 3000 mm x 2200 mm x 2100 mm (approx.)
40 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water
Minimum Order Quantity : 1 Unit
Voltage : 220/380 V, 50/60 Hz
Power : 3 5 kW
Power Source : Electric
Speed Mode : 40 Bottles Per Minute (BPM)
Dimension (L*W*H) : 2500 mm x 2200 mm x 2100 mm

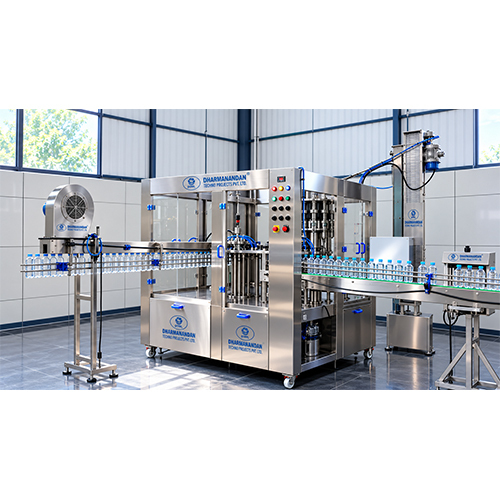

90 BPM Fully Automatic water bottle washing Filling and Capping Machine for mineral water
